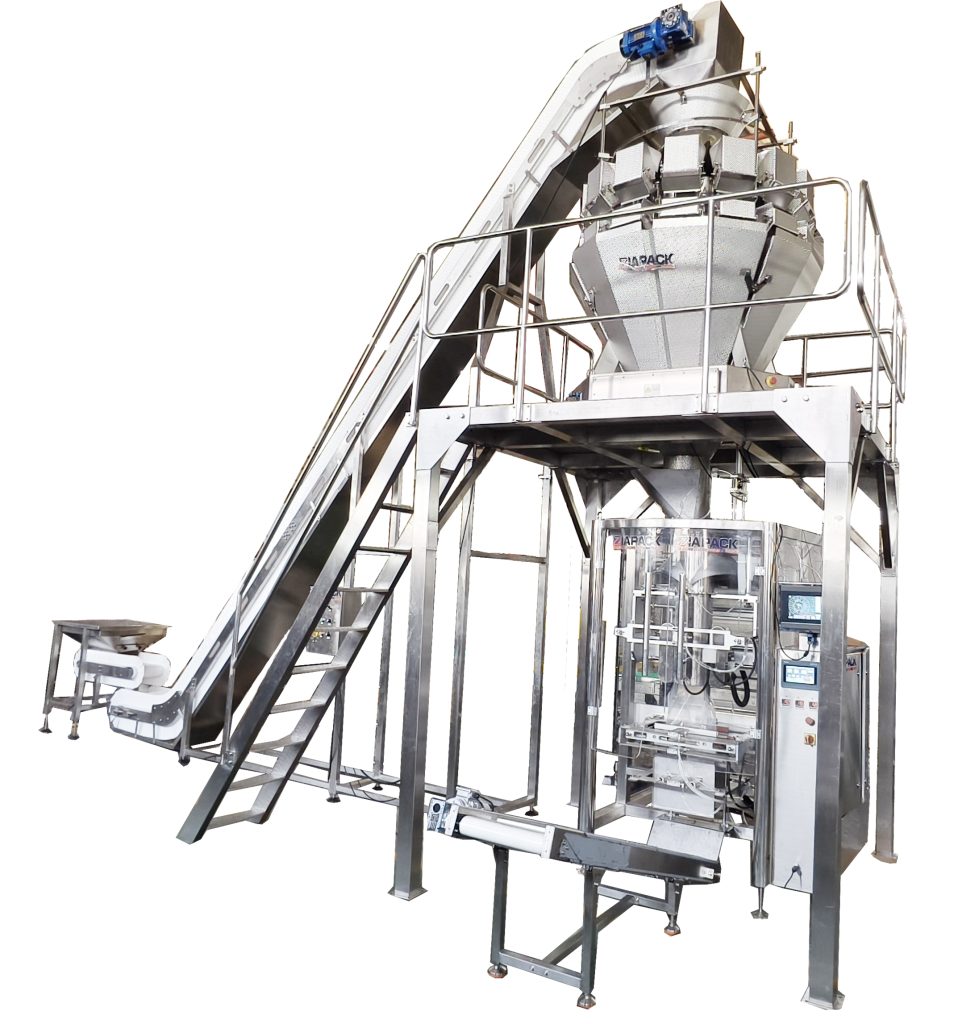

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Aplicație:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Caracteristici:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Introducere:
Această mașină poate realiza automat funcții de fabricare a pungilor, umplere, etanșare, imprimare, tăiere etc. Această mașină poate ajunge automat la umplerea și etanșarea de formare a sacului.
Această mașină de ambalare adoptă un servomotor de import pentru alimentarea cu film, iar interfața om-mașină folosește un ecran tactil avansat. Operare mai simplă și mai convenabilă. Toate componentele adoptă o marcă renumită internațional, PLC este SIEMENS, servomotor este PANASONIC, ecranul tactil este SIEMENS, cilindrul și supapa de aer sunt SMC. piesele care intră în contact cu materialul, dulapul de comandă, cadrul principal sunt fabricate din oțel inoxidabil 304
Parametri tehnici:
| Model | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Lungimea sacului | 150-480mm by secondary film pulling the bag length can be longer |
| Lățimea sacului | 120-375mm(Side width +front width ) |
| Lățimea filmului | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Putere | 6KW 380V±10% 50Hz |
| Dimensiunea mașinii | 1650*1500*1750mm |
| Greutatea mașinii | 650 kg |
