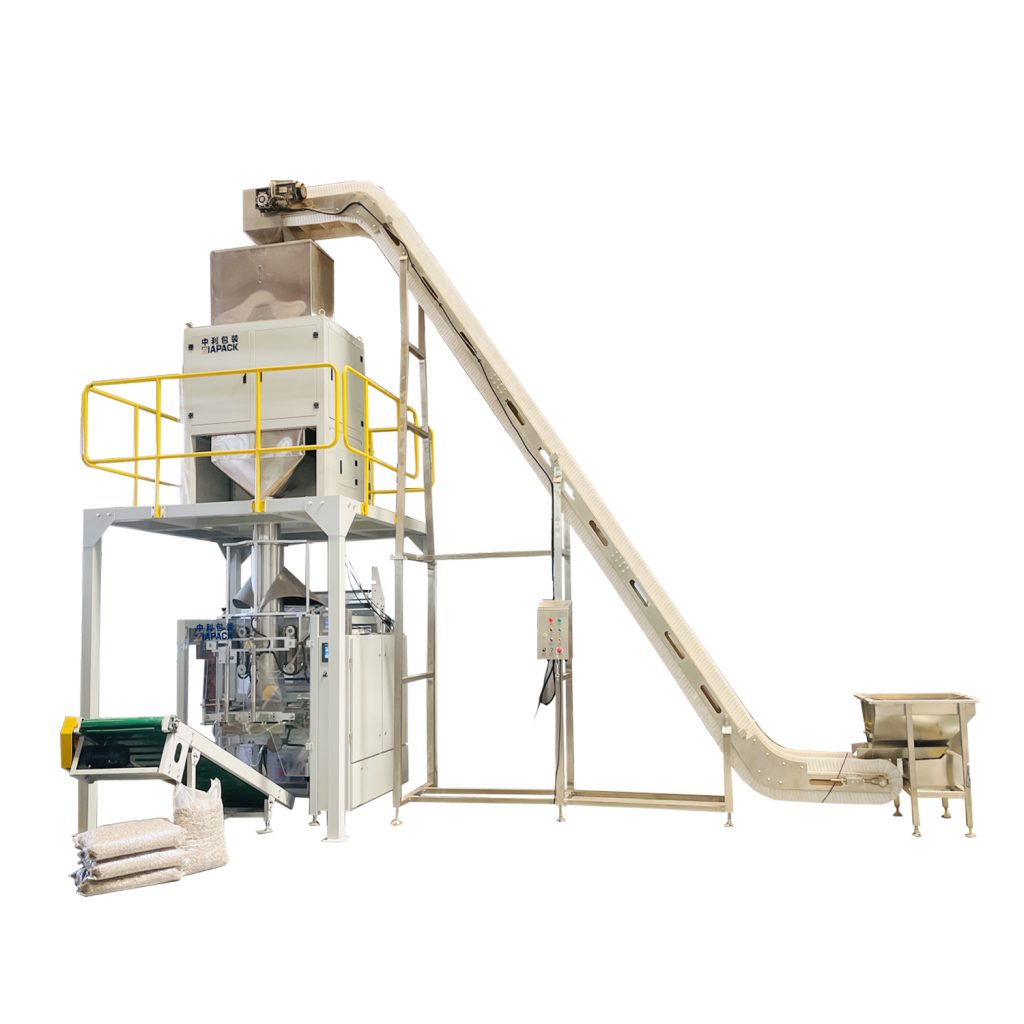

Automatic15-20 kg wooden pellets bag forming filling packaging machine
Introducere:
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
Parametri tehnici:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
Necesitate de aer comprimat: 0.6Mpa 0.65m³ / min
Reel outer diameter: 450mm
Diametrul interior al miezului: 75 mm
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
Principalele caracteristici și caracteristici:
- A wide range of pouches: Pillow and Gusset pouches.
- Viteză mare: 20-50 saci/min
- Ușor de operat: controler PLC și ecran tactil color, indicație de eroare pe ecranul tactil.
- Ușor de reglat: doar aproximativ 10 minute pentru a schimba diferite pungi.
- Controlul frecvenței: viteza poate fi ajustată prin conversia frecvenței în intervalul de timp.
- Automatizare înaltă: fără pilot în procesul de cântărire și ambalare, alarmă automată în caz de eșec.
- Siguranță și igiena:
- Fără film, mașina va alarma.
- Aparatul de alarmă și opriți atunci când presiunea de aer inadecvată.
- Păstrați siguranța cu întrerupătoare de siguranță, alarma aparatului și opriți când sunt deschise dispozitivele de protecție.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

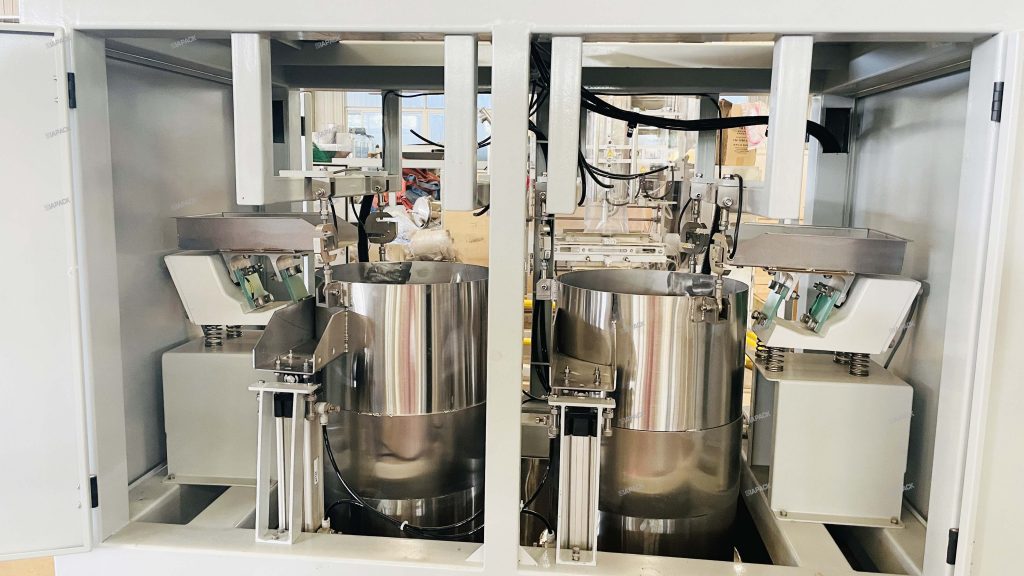

- ZLC2-15k double bucket weighing machine
Introducere:
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
Caracteristici:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
