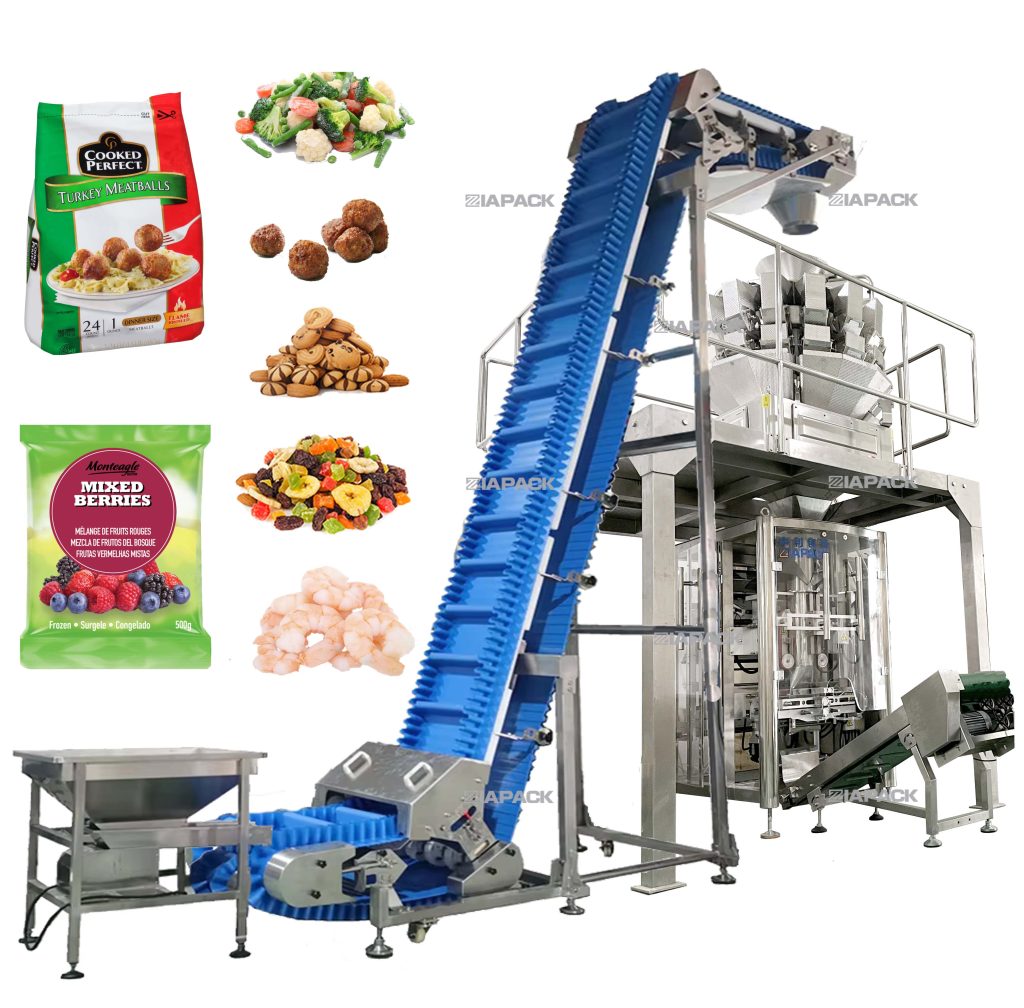

Mașină automată de ambalare și umplere cu cântărire a alimentelor congelate

Introducere:

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

Aplicație:

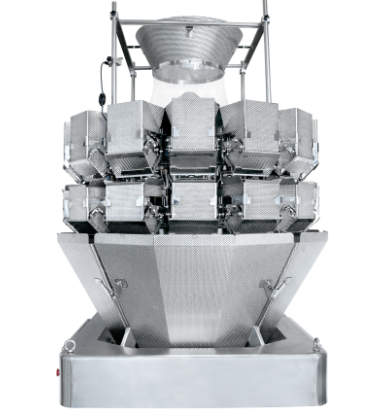

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

Caracteristici:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Specificații:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

Introducere:

Această mașină poate realiza automat funcții de fabricare a pungilor, umplere, etanșare, imprimare, tăiere etc. Această mașină poate ajunge automat la umplerea și etanșarea de formare a sacului.

Această mașină de ambalare adoptă un servomotor de import pentru alimentarea cu film, iar interfața om-mașină folosește un ecran tactil avansat. Operare mai simplă și mai convenabilă. Toate componentele adoptă o marcă renumită internațional, PLC este SIEMENS, servomotor este PANASONIC, ecranul tactil este SIEMENS, cilindrul și supapa de aer sunt SMC. piesele care intră în contact cu materialul, dulapul de comandă, cadrul principal sunt fabricate din oțel inoxidabil 304

Parametri tehnici:

Viteza de ambalare (MAX): 20-50 saci/min

Tip geantă: geantă pernă .geantă cu guss

Bag size: bag width 60-250mm bag length 80-350mm

Consum de aer comprimat: 0,6 MPa 350 L/min

Necesar electric: 380V/5,5 kW50 Hz
