Automatic mix nuts weighing filling packaging machine

Automatic doy bag packing solution for 25-500gram nuts

Machine introduction:

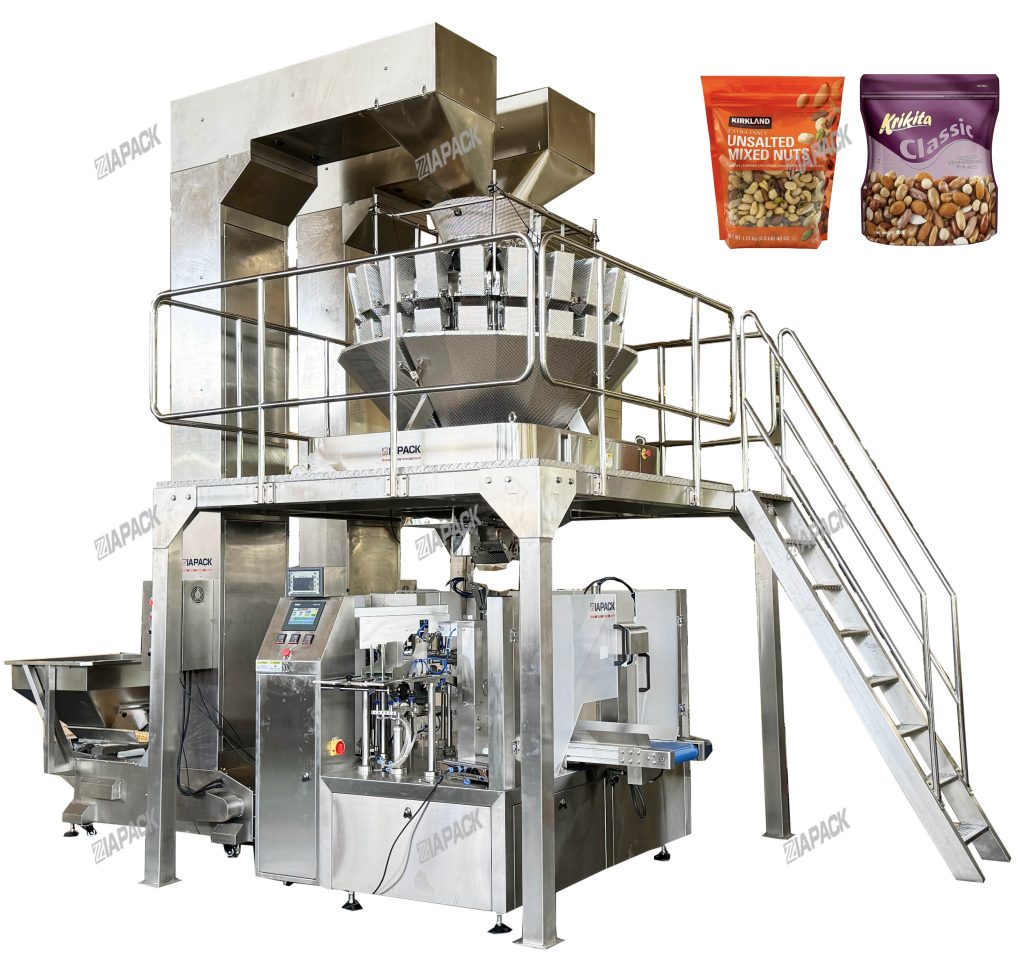

This unit machine including one set ZL20-1.6L multi heads weighing machine for weighing two different product, one set ZL8-230 rotary bag taking opening filling sealing machine, one set DT5 bucket elevator and one set safety platform and ladder. The main machine are control by siemens PLC and operate by touch screen .Adopt famous Electrical accessories. High automation and easy to operate. Widely use by the different industry like Daily chemical, food, chemical, and etc.

Machine details:

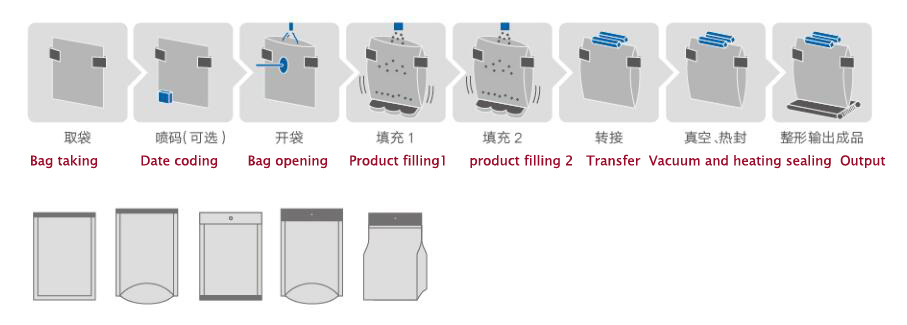

1, Model of ZL8-230 Rotary packing machine（doy packer with zipper)

Function and characteristics

1、Ușor de operat, adoptați PLC avansat de la Siemens, cu ecran tactil și sistem de control electric, interfața om-mașină este prietenoasă.

2, conversia frecvenței reglează viteza: această mașină folosește echipament de conversie a frecvenței, poate fi ajustată în interval în funcție de nevoile realității în producție

3, Verificare automată: fără eroare de deschidere a pungii sau a pungii, fără umplere, fără sigiliu. sacul poate fi folosit din nou, evitați irosirea materialelor de ambalare și a materiilor prime.

4、Dispozitiv de siguranță: oprirea mașinii la presiunea anormală a aerului, alarmă de deconectare a încălzitorului。

5, lățimea pungilor ar putea fi ajustată de un motor electric. Apăsați butonul de control pentru a regla lățimea clemelor, a putea opera cu ușurință și a economisi timp.

6, se poate potrivi cu ușa de siguranță din sticlă. În același timp, ar putea preveni praful.

7, Folosiți rulmentul din plastic, nu aveți nevoie de ulei, mai puțină poluare.

8, nu folosiți pompa de vid de ulei, evitați poluarea mediului în producție.

9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

10、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

11、With different feeders changed to pack solid, liquid, thick liquid, powder and so on

12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on

Preformed bag made by film and paper.

Specificații

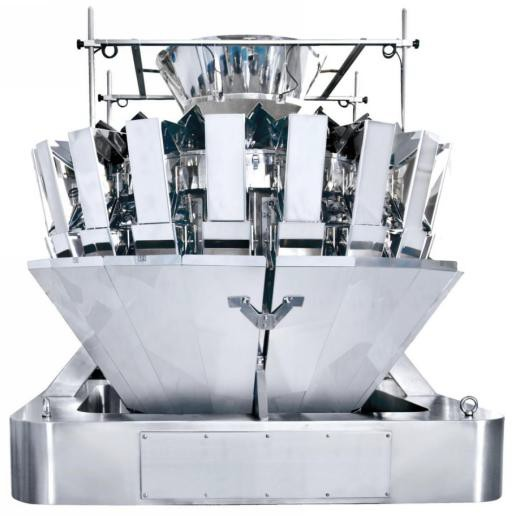

ZL20-2.5L multiheads combination weighing machine

Scopul aplicatiei:

It is suitable for high-speed weighing of a single material, formula mixing of multiple materials: the longest material is 60mm, and the single material is less than 60g, such as instant oatmeal and mixed nuts.

Caracteristici:

The High-speed mode can be used for a single material;

The Weight Of the mixture can be compensated by the operation of the last material;

Using High-precision,high-standard special sensors;

Intelligent Fault Alarm prompt, maintenance is more convenient;

High-speed synchronous discharge function, effectively prevent material blockage;

The Highly integrated modular design adopts CAN bus technology;

Modbus industry standard communication protocol, realizes the combination of the combination scale and the packaging machine interface;

Other functions and features of the same generation model;

For Viscous Materials, anti-stick measures such as 60° chassis and Teflon coating can be used.

Mechanical Characteristics And product characteristics:

Separate Upper Hoppers are used for a variety of mixed formula materials;

Adopt independent main vibration machine to control the feeding thickness of different materials respectively;

The Integral Chassis and middle seat enhance the rigidity and strength of the machine, making the weighing more accurate;

The Chassis And chute adopt compatible design. When weighing a single material, it can be replaced with a double-port unloading tray, which can be equipped with a double-packing machine;

The Unified Design standard and the mold making process make the interchangeability of each part stronger.

Thestable Aluminum shell structure makes the hopper run more stably and the readings are more accurate. The integral chassis and the middle seat enhance the strength of the machine, making the hopper's stabilization time shorter;

Specificații:
