Introducere:

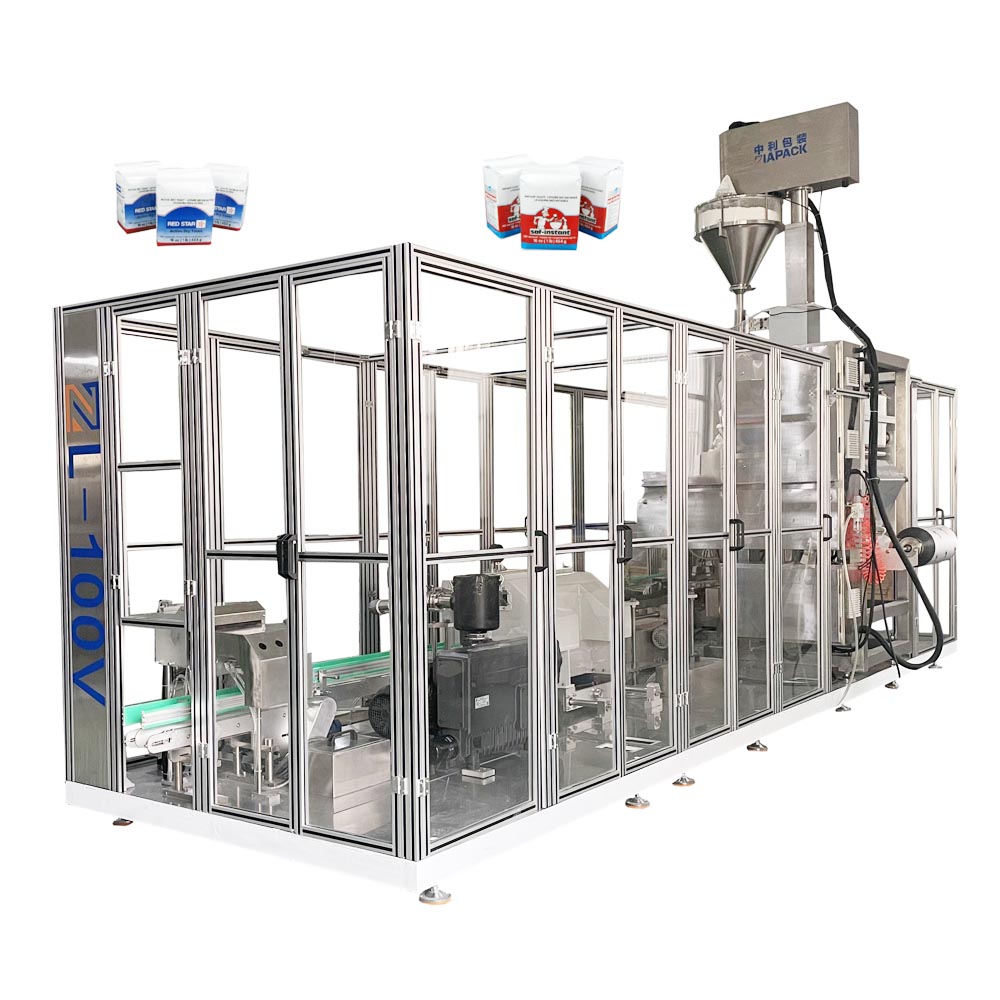

This machine including one set ZL520 vertical bag making packing and sealing machine .one set ZL2000 Auger measuring machine ,One set ZL100V2 double vacuum chamber packing machine ,and one set output conveyor .The machine have the function of bag forming ,product filling ,bag cleaning and vacuuming .Can choose thermal transfer coding machine which are more popular for make date coding on Coffee brick vacuum bag .This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder wheat flour and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high can be reach 8bag/min .The finished product is very nice and have a long shelf life.
Application :
Parametri tehnici :
Model :ZL100V2 ( Double vacuum chamber )
Packing speed :200-250gram 25-30bag/min
500gram 22-25bag/min
Dimensiunea mașinii: 6800*3800*4080mm
Power :18kw(Suggest client use air storage tank with volume is 1.5cbm)
ZL100V2 LINIAR TIP ASPIRAT DUBLU CAMERĂ MAȘINĂ DE ÎMPACHETARE
Această mașină este un design special pentru produse de ambalare în vid în vid înalt. Întreaga mașină este controlată de PLC Siemens și ecran tactil. Adoptă componente pneumatice de marcă celebră. Începeți procesul de vid în camera de vid poate atinge gradul de vid înalt.
Parametru tehnic:
Lungime sac: 100-260 mm
Lățimea sacului: 60-250 mm (lățime laterală + lățime față)

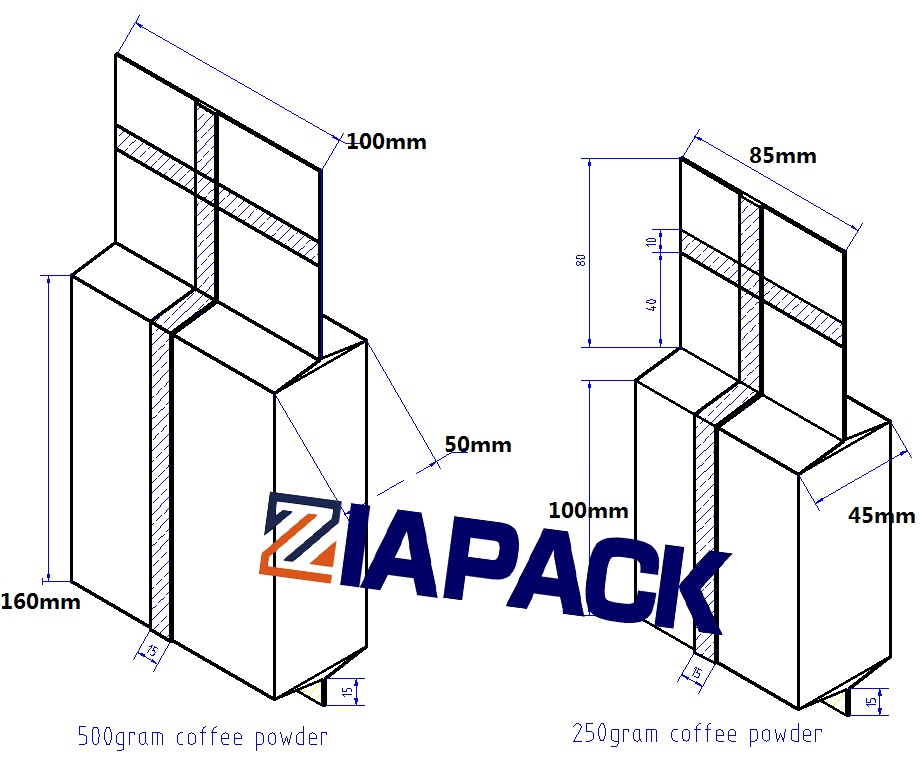

Tip sac: sac de vid tip caramida
Consumul sursei de aer: 0,6 MPa 0,45 m3/min
Putere: 8KW 380V±10% 50Hz
Greutatea mașinii: 1200 kg
Working progress :
Get gusseted bag from VFFS packaging machine (bag mouth opening )---forming &opening the bag mouth ---Filling the material from auger filler---Cleaning the bag mouth and vibrating ----Press module to pressing the bag material ---Folding the gusseted with vibrating ---Folding the top to make the top flat ----send to vacuum chamber ---Pushing into vacuum chamber ----Vacuuming and heating sealing --- Output from vacuum chamber ---Send to cutting the bag top area .---Finished bag output
